Creating a PrivateLink Valkey Cluster

Overview

This article describes how to provision a Valkey cluster with PrivateLink using the Instaclustr Console. PrivateLink is a networking feature provided by Amazon Web Services (AWS) that provides direct and secure connectivity between AWS VPCs. Refer to our support documentation page on PrivateLink to learn more about the details of the feature, and our support for it.

Limitations

In addition to the general limitations referred to in the PrivateLink documentation page, please note:

• The Enterprise Feature called Private Network Cluster is a prerequisite to PrivateLink, and enabling PrivateLink will automatically enable Private Network Cluster.
• Multiple Data Centres and Valkey mirroring are not supported for Valkey PrivateLink clusters.
• PrivateLink Clusters are restricted to non-developer node sizes
• PrivateLink Valkey clusters are restricted to Valkey 7 and above.
• A managed Instaclustr for Valkey cluster on the Instaclustr platform with PrivateLink enabled is limited to 48 nodes . This limitation comes from the AWS limitation of only allowing 50 listeners per Network Load Balancer.

Creating a Cluster

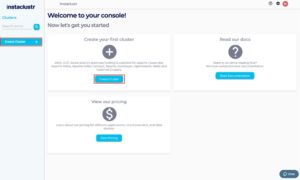

Log into the console and click the Create Cluster button.

Under the Applications page, select Valkey as the application and AWS as the provider. You should see a checkbox under Enterprise Feature called PrivateLink.

Note: The Instaclustr platform currently only supports PrivateLink for AWS.

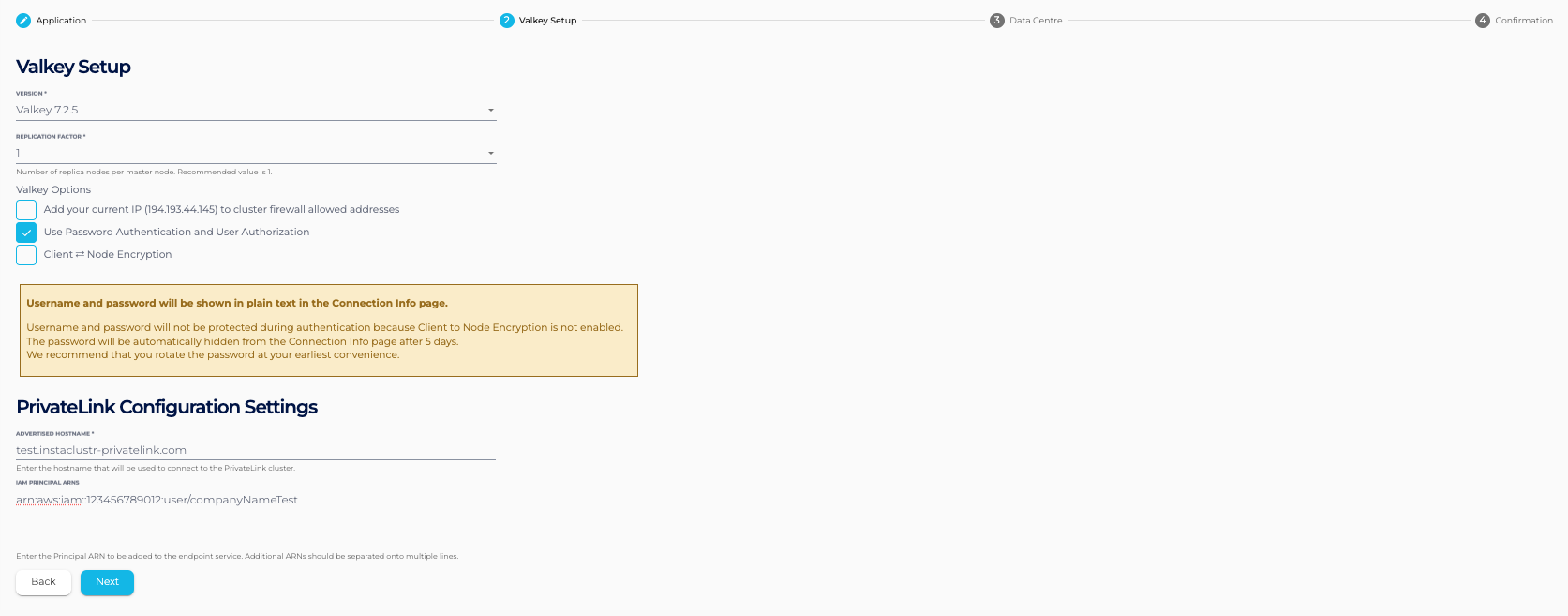

On the Valkey Setup page, select a version of Valkey 7.

Under the PrivateLink Configuration Settings section, there are 2 fields: Advertised Hostname is a required field and IAM Principal ARNs is optional.

Advertised Hostname is required for PrivateLink as it is used by clients to connect to the cluster. For details on how to connect to the cluster see Connecting to a Valkey PrivateLink Cluster.

IAM Principal ARNs is optional for PrivateLink and can be adjusted later by following the details in managing Principal ARNs. IAM Principal ARNs are used to allow connection from your endpoint to the created cluster’s endpoint service. For instance, if arn:aws:iam::123456789012:user/companyNameTest is a real AWS Principal ARN, and is added to this field, you will be able to create an endpoint with the provided endpoint service name. Fill those fields and click Next.

Under the Data Centre page, confirm the selected Data Centre is correct. Click Next.

Under the Confirmation page, check that the configurations such as Advertised HostName and IAM Principal ARNs are properly configured, accept the Instaclustr terms and conditions, and click Create Cluster.

Once your cluster is running, further steps will be required to connect to it.

Please refer to our support page on Connecting to a PrivateLink Instaclustr for Valkey Cluster for a guide through this process.

For more information on PrivateLink, please refer to our support documentation page.

Please contact Instaclustr Support for any further inquiries.
