Cadence Advanced Visibility

Advanced Visibility allows users to search (via CLIs, APIs and Cadence Web) for running or previously executed Cadence workflows with a custom SQL-like query.

For example, you can create workflows with keys Location and StartTime, then search all workflows with Location = ‘Sydney’ and StartTime > ‘2022-03-01T11:00:00+11:00’.

Without Advanced Visibility, the relevant APIs will generally return a complete list of all workflows.

Enabling advanced visibility requires the use of Apache Kafka® and OpenSearch clusters which will be used by the Cadence cluster.

Advanced visibility is available via CLI, APIs(Go and Java) and Cadence Web as illustrated in the examples below.

Example:

Command Line Interface (CLI)

# add search attribute ‘Location’ as keyword
cadence --ad 127.0.0.1:7933 --domain samples-domain adm cl asa --search_attr_key Location --search_attr_type 1

# default will only show one page of workflow
cadence --ad 127.0.0.1:7933 --domain samples-domain workflow list

# use --more -m  flag to view more than one page of workflow
cadence --ad 127.0.0.1:7933 --domain samples-domain workflow list -m

# use --query to list workflows with SQL-like query (advance visibility)
cadence --ad 127.0.0.1:7933 --domain samples-domain workflow list --query "Location = 'Sydney' AND StartTime > '2022-03-01T11:40:00+11:00' ORDER BY StartTime DESC"

# add search attribute ‘Location’ as keyword

cadence --ad 127.0.0.1:7933 --domain samples-domain adm cl asa --search_attr_key Location --search_attr_type 1

# default will only show one page of workflow

cadence --ad 127.0.0.1:7933 --domain samples-domain workflow list

# use --more -m flag to view more than one page of workflow

cadence --ad 127.0.0.1:7933 --domain samples-domain workflow list -m

# use --query to list workflows with SQL-like query (advance visibility)

cadence --ad 127.0.0.1:7933 --domain samples-domain workflow list --query "Location = 'Sydney' AND StartTime > '2022-03-01T11:40:00+11:00' ORDER BY StartTime DESC"

APIs (Java)

import com.uber.cadence.serviceclient.ClientOptions;
import com.uber.cadence.serviceclient.WorkflowServiceTChannel;
import com.uber.cadence.ListWorkflowExecutionsRequest;
import com.uber.cadence.ListWorkflowExecutionsResponse;

final String DOMAIN = "samples-domain";

final WorkflowServiceTChannel cadenceService =
   new WorkflowServiceTChannel(
       ClientOptions.newBuilder()
           .setHost("127.0.0.1")
           .setPort(7933)
           .build());


ListWorkflowExecutionsRequest request = new ListWorkflowExecutionsRequest();
request.setDomain(DOMAIN);
request.setQuery("Location = ‘Sydney’" +
       " AND StartTime > ‘2022-03-01T11:00:00+11:00" +
       " ORDER BY StartTime DESC");

try {
    ListWorkflowExecutionsResponse resp = cadenceService.ListWorkflowExecutions(request);
} catch (Exception e)
{
    // ...
}

import com.uber.cadence.serviceclient.ClientOptions;

import com.uber.cadence.serviceclient.WorkflowServiceTChannel;

import com.uber.cadence.ListWorkflowExecutionsRequest;

import com.uber.cadence.ListWorkflowExecutionsResponse;

final String DOMAIN = "samples-domain";

final WorkflowServiceTChannel cadenceService =

new WorkflowServiceTChannel(

ClientOptions.newBuilder()

.setHost("127.0.0.1")

.setPort(7933)

.build());

ListWorkflowExecutionsRequest request = new ListWorkflowExecutionsRequest();

request.setDomain(DOMAIN);

request.setQuery("Location = ‘Sydney’" +

" AND StartTime > ‘2022-03-01T11:00:00+11:00" +

" ORDER BY StartTime DESC");

try {

ListWorkflowExecutionsResponse resp = cadenceService.ListWorkflowExecutions(request);

} catch (Exception e)

{

// ...

}

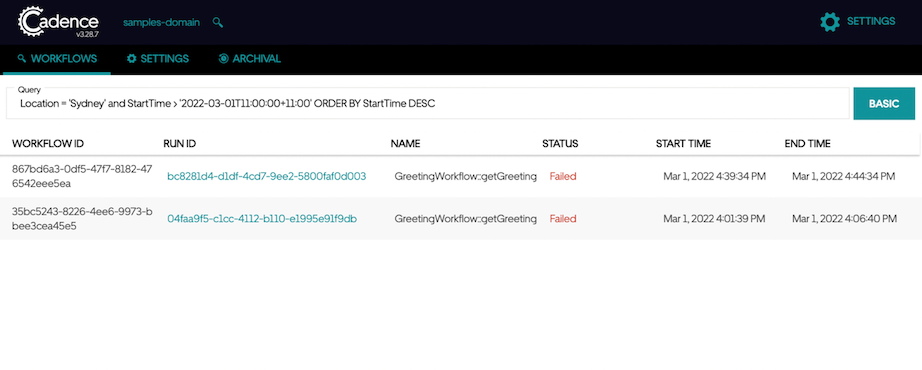

Cadence Web UI

Please contact [email protected] if you have any questions.
